01Available Configurations
Single & Double Leaf Options

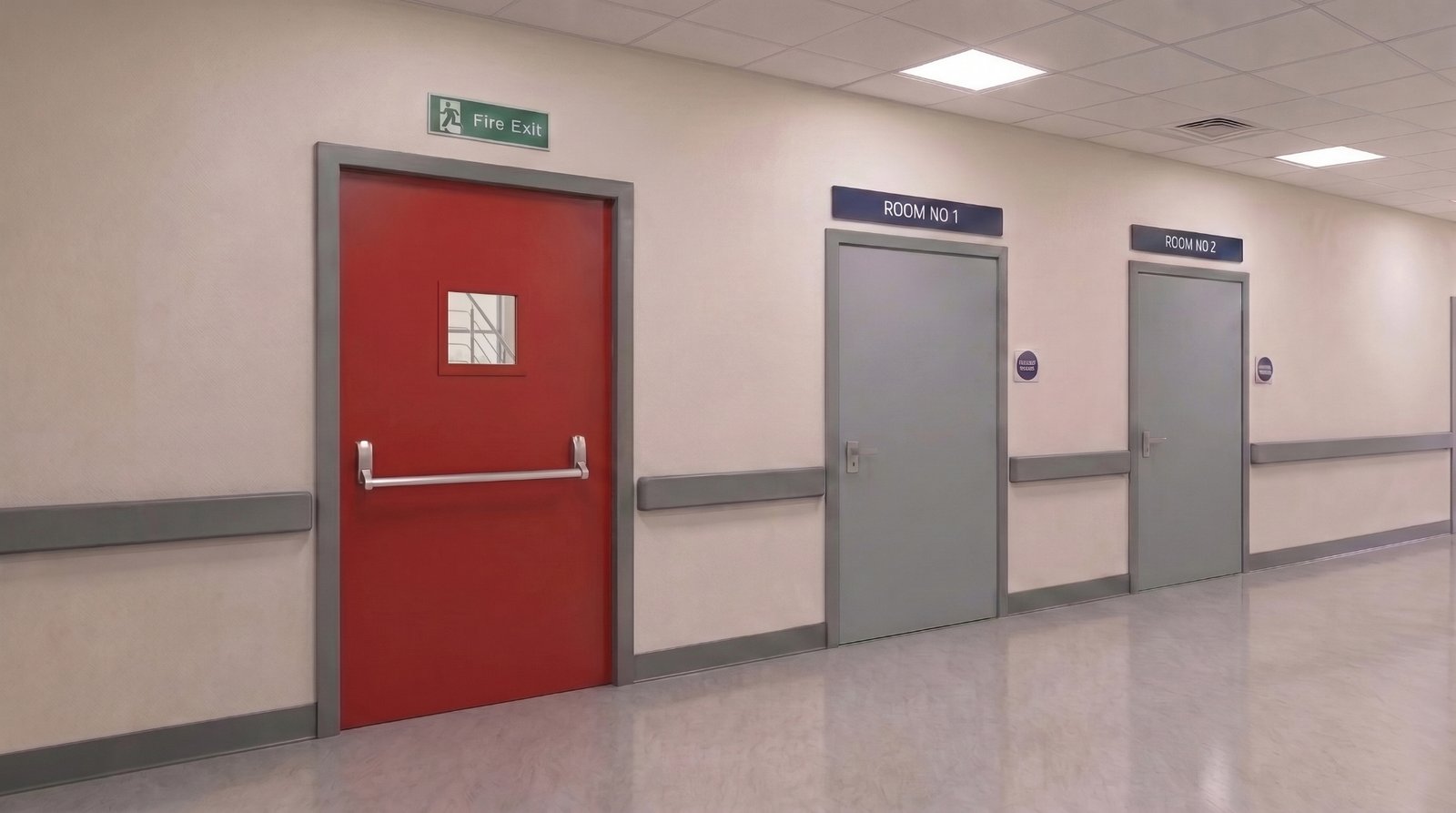

Single Leaf Door
Single Leaf (W x Ht)
- door_front900 × 2100 mm
- door_front1200 × 2100 mm

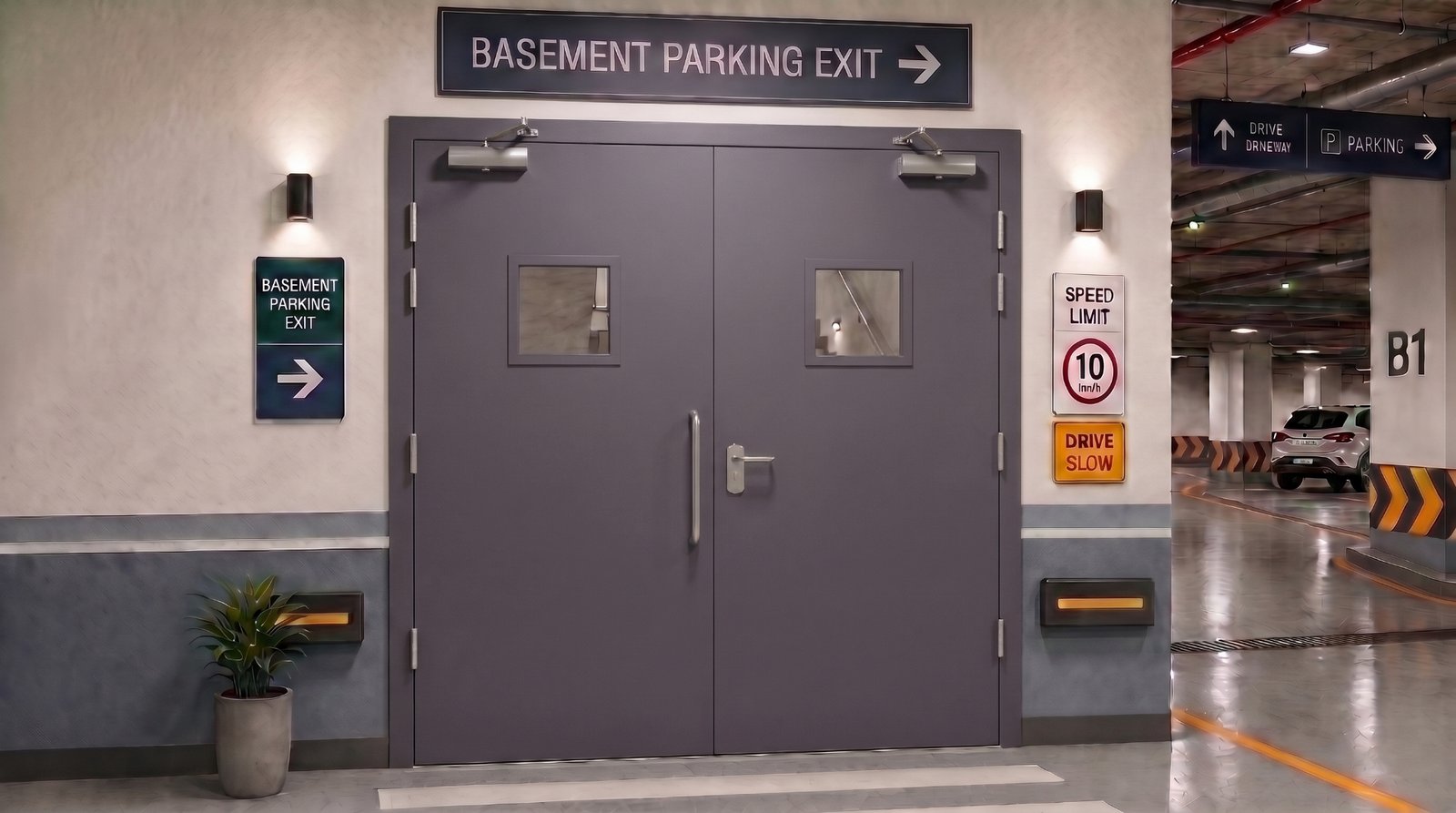

Double Leaf Door
Double Leaf (W x Ht)
- door_front1500 × 2100 mm
- door_front1800 × 2100 mm
- door_front2000 × 2100 mm
02Key Features
Built with Purpose
shield
Durable Steel Construction
layers
Multiple Core Options
local_fire_department
Fire-Rated Door Construction
tune
Customizable Configurations
apartment
Application Versatility
format_paint
Powder-Coated RAL Finish
03Applications
Where It Performs
01
Residential Buildings
02
Commercial Buildings
03
Healthcare Facilities
04
Hospitality Facilities
05
Public Infrastructure
06
Light Industrial Areas
07
Utility Areas
04Technical Specifications
Engineered to Standard
Complete specification profile aligned to IS 3614:2021 fire-door performance requirements.
Construction
Galvanized Steel & CRCA
Sheet Thickness
0.8 mm to 1.6 mm
Door Thickness
40 mm / 50 mm
Core Options
Rockwool, Ceramic wool & Honeycomb
Finish
Powder Coated RAL Shades
Fire Ratings
FD30 & FD60
Standard
IS 3614:2021
Vision Panel
Optional fire-rated glass
Customization Available
- checkRAL Shade Options
- checkDoor Sizes & Sheet Thickness
- checkHardware Selection
- checkVision Panel Options
Safety Features
🛡
Fire-Rated Door Construction
🔥
Intumescent Seal Protection
🌫
Smoke Control Capability
